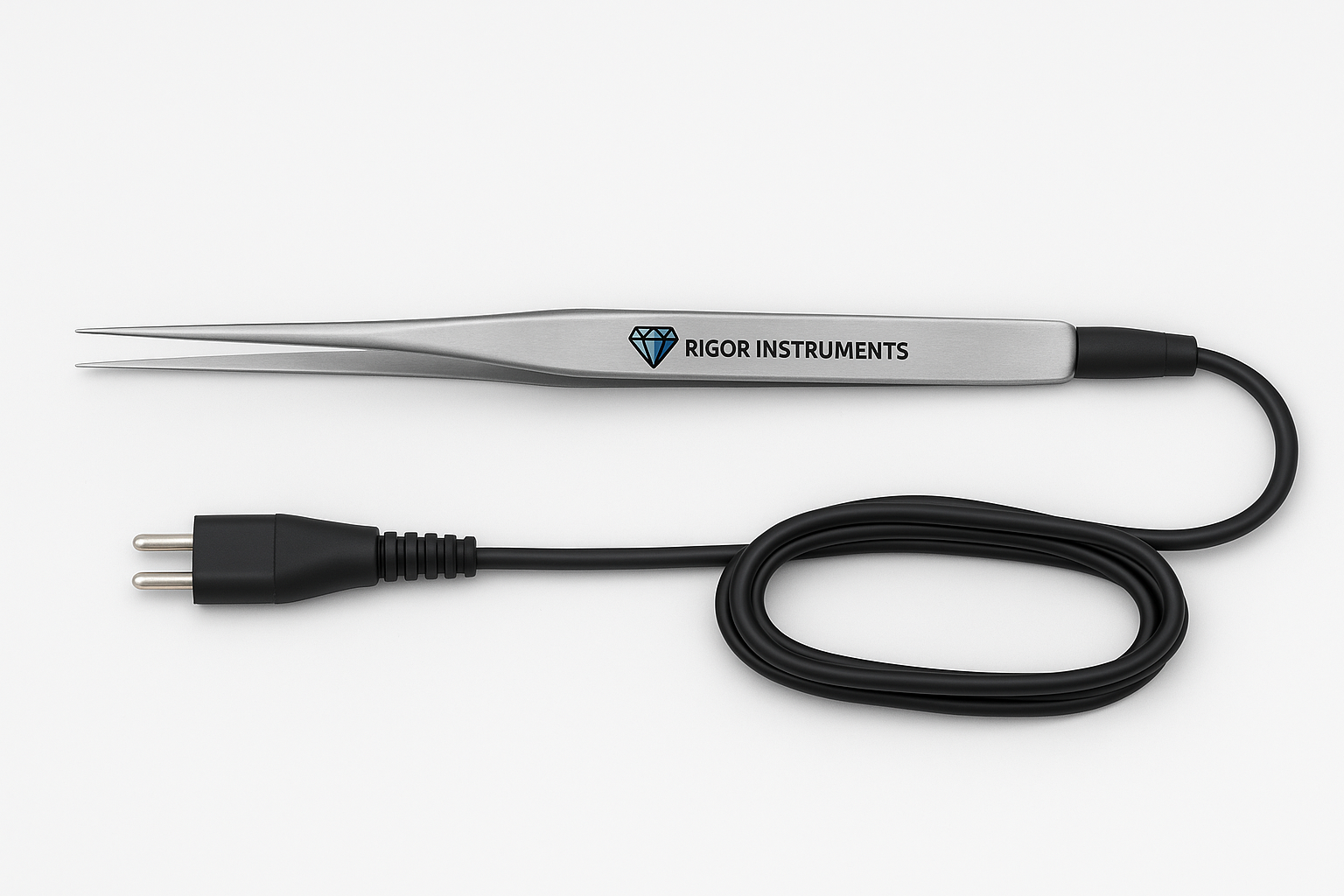

Bipolar Forceps – Precision Electrosurgery Tools
Available in European & American Connections
Manufactured by RIGOR INSTRUMENTS – Designed for Surgical Accuracy and Safety
Product Overview
Rigor’s Bipolar Forceps are premium electrosurgical instruments engineered for controlled coagulation and dissection during microsurgery, neurosurgery, ENT, and general surgery. Available in both European and American connection standards, these forceps deliver consistent electrical performance with ergonomic handling.
Key Features
-
🔹 Connector Type: European (2-pin round) & American (flat 2-pin)
-
🔹 Material: German-grade stainless steel with anti-stick coating
-
🔹 Handle Design: Ergonomic, lightweight, and heat-resistant
-
🔹 Jaw Tips: Smooth or serrated, straight or angled
-
🔹 Length Options: 8 cm to 24 cm
-
🔹 Insulation: High-quality medical-grade insulation
-
🔹 Autoclavable: Multiple sterilization cycles
Connection Types
| Type | Description |
|---|---|
| European | 2-pin round connector – widely used in EU & Asia |
| American | 2-pin flat connector – common in USA systems |
Compatible with all standard bipolar electrosurgical generators like Valleylab, Bovie, Erbe, Aesculap, etc.
Specifications
| Feature | Options / Values |
|---|---|
| Length | 8 cm / 12 cm / 18 cm / 20 cm / 24 cm |
| Tip Styles | Fine / Blunt / Bayonet / Straight / Curved |
| Connection Type | European / American |
| Finish | Satin or Anti-stick Coating (Black/Blue) |
| Material | German Stainless Steel |
| Sterilization | Autoclavable (135°C) |
| Reusability | Yes (Multi-use / Reusable) |
Variants Available
-
Bayonet Bipolar Forceps
-
Straight Bipolar Forceps
-
Non-stick Bipolar Forceps (PTFE coated)
-
With irrigation channels (optional)
Custom OEM Options
-
Private label with your brand logo
-
Custom packaging
-
Cable sets available on request
-
Bulk discounts for hospitals and distributors
About RIGOR INSTRUMENTS
RIGOR INSTRUMENTS is a certified manufacturer of high-precision surgical instruments and electro surgical accessories. Our bipolar forceps are crafted for durability, safety, and surgeon comfort — all at globally competitive prices.

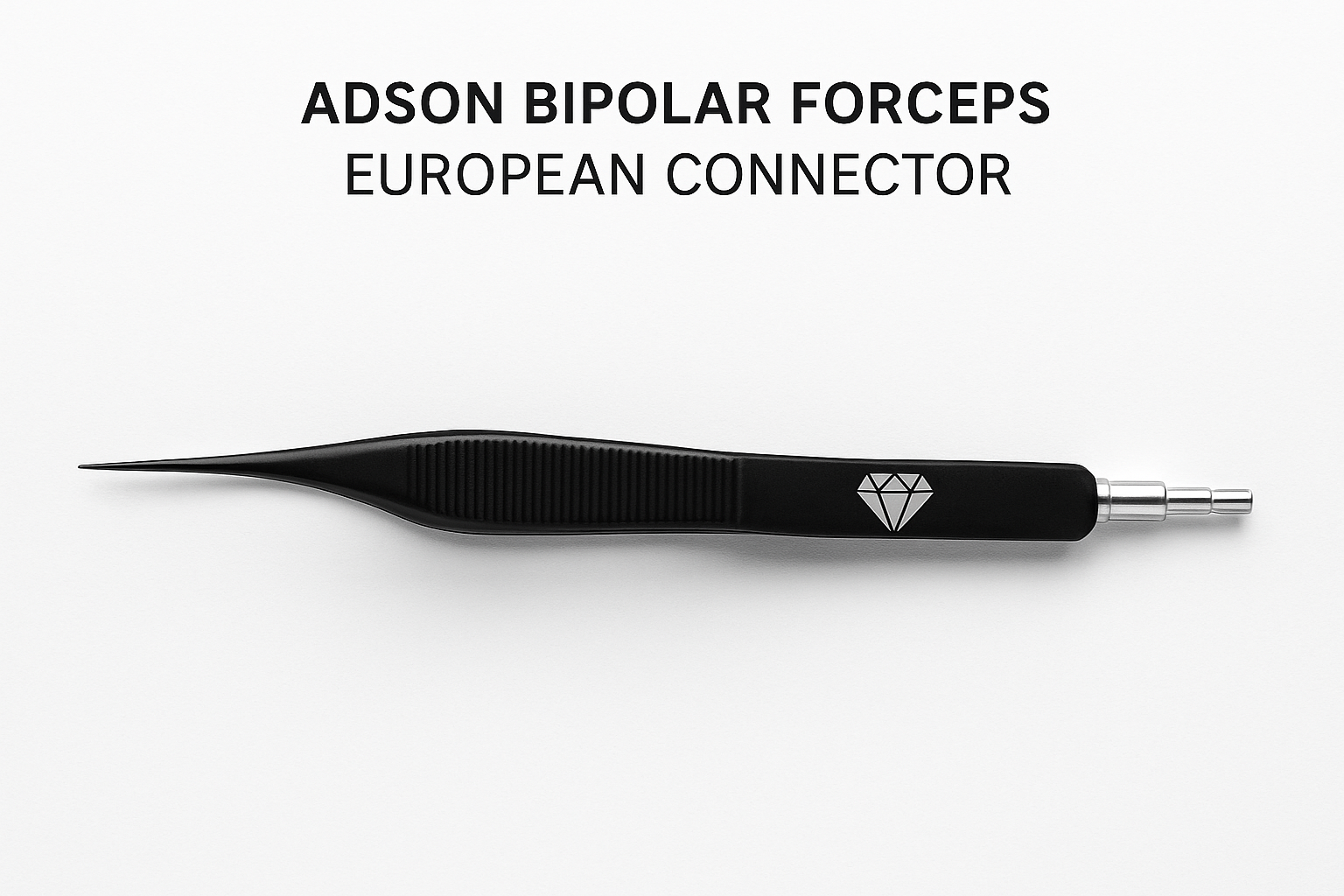

European Connector Bipolar Forceps

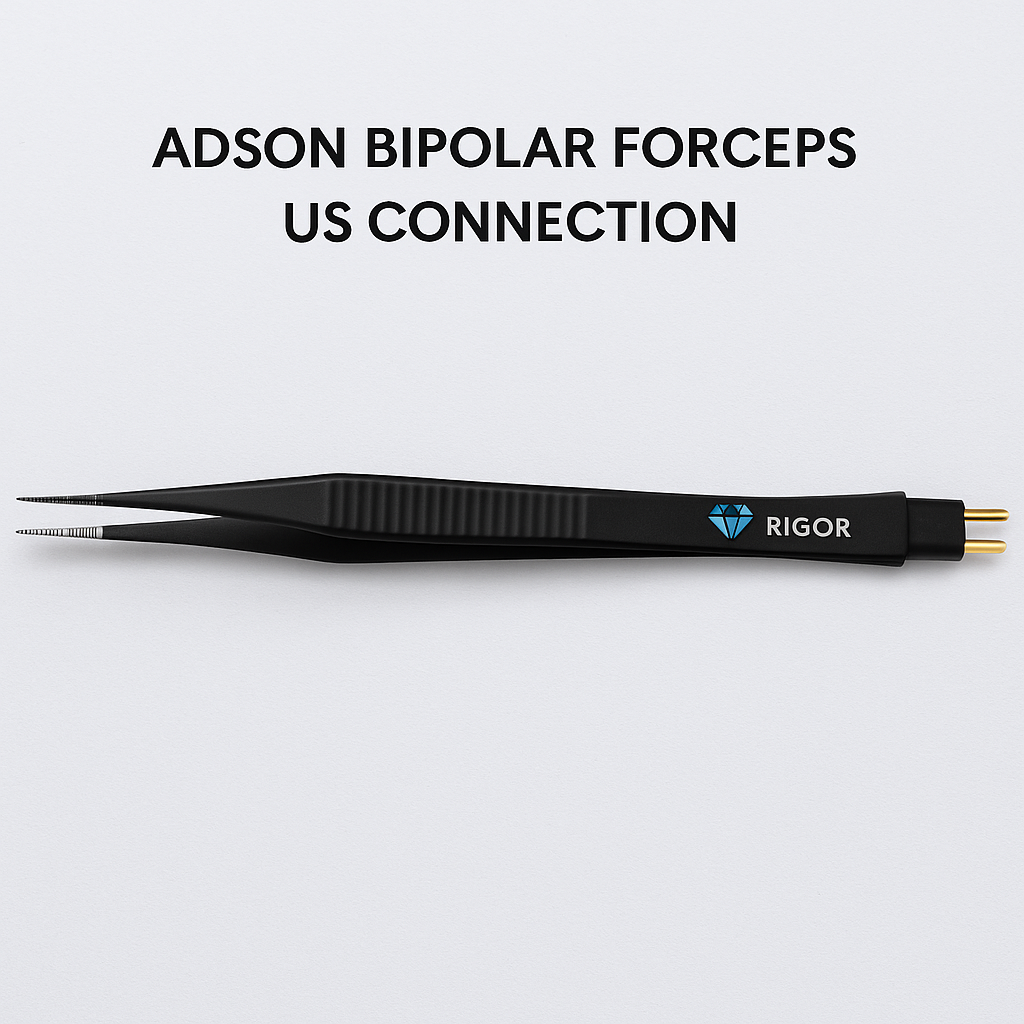

American Connector Bipolar Forceps
-
Product: American Bipolar Forceps with 2-Pin Banana Plug Connection
Technical Datasheet
Bipolar Forceps – European & American Connection
Manufacturer: RIGOR INSTRUMENTS
Model Codes: RGF-BP-EU / RGF-BP-US
General Specifications
| Parameter | Details |
|---|---|
| Product Name | Bipolar Forceps |
| Connection Type | European (2-pin round) / American (2-pin flat) |
| Application | Coagulation, dissection in microsurgery and electrosurgery |
| Material | German Stainless Steel (AISI 420 / 304) |
| Handle Material | Heat-resistant polymer, ergonomic grip |
| Surface Finish | Satin / PTFE Non-Stick Coated (optional) |
| Sterilization | Autoclavable (135°C, 18–20 cycles) |
| Insulation | Medical-grade polymer coating, dielectric > 2kV |
| Tip Styles | Fine, Blunt, Curved, Straight, Bayonet |
| Lengths Available | 8 cm / 12 cm / 16 cm / 18 cm / 20 cm / 24 cm |
| Jaw Width | 0.25 mm, 0.5 mm, 1.0 mm |
| Cable Compatibility | Compatible with Valleylab, Erbe, Aesculap, Martin, Bovie etc. |
Standard Product Variants
| Model | Length | Tip Type | Connection | Coating |
|---|---|---|---|---|
| RGF-BP12EU | 12 cm | Straight Fine | European | Satin |
| RGF-BP18EU | 18 cm | Bayonet | European | Non-Stick (PTFE) |
| RGF-BP20US | 20 cm | Curved | American | Satin |
| RGF-BP24US | 24 cm | Bayonet Fine | American | Non-Stick (PTFE) |
Regulatory & Packaging
| Certification | CE Marked, ISO 13485:2016, FDA Listing (Optional) |
|---|---|
| Sterile Packaging | Available upon request |
| Labeling | Custom OEM, laser engraving, barcoding |
| Packaging | Individually packed in blister or medical-grade pouch |
