Passivation and its role in final quality







 Importance of Passivation in Surgical Instruments

Passivation is a critical chemical process used to enhance the corrosion resistance of stainless steel surgical instruments. It ensures that instruments maintain their integrity, hygiene, and longevity during repeated sterilization and usage.


 Why Passivation Matters

  1.  Corrosion Resistance

    • Removes free iron and surface contaminants left from machining or handling.

    • Forms a thin, protective oxide layer (chromium oxide) on the surface of stainless steel.

    • Prevents rust, pitting, and discoloration even after multiple autoclave cycles.

  2.  Enhanced Cleanability

    • A clean, passive surface resists microbial adhesion.

    • Reduces bio-burden retention on surgical tools, which is crucial in sterile environments.

  3.  Prolongs Instrument Life

    • Instruments remain functional and aesthetic for longer.

    • Reduces wear, surface degradation, and replacement costs.

  4. Maintains Biocompatibility

    • Ensures the instrument’s surface is non-reactive and safe when used inside the human body.

  5.  Regulatory Compliance

    • Required for ISO 13485, ASTM A967, CE Marking, and FDA approval.

    • Standard in QA protocols for Class I & II surgical devices.

 How Rigor Instruments professional staff Handles Passivation

  • In-house passivation tanks using nitric or citric acid baths

  • Automated rinsing and neutralization stations

  • Final rinse in deionized water to remove chemical residues

  • Batch-coded documentation for traceability and quality audits

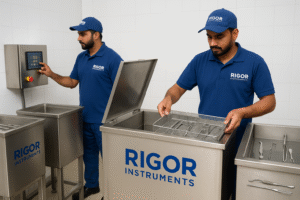

 Rigor Instruments – Passivation Machinery & Setup

1.  Stainless Steel Passivation Tanks

  • Material: Acid-resistant SS-316

  • Capacity: 100–500 liters

  • Chemicals Used: Citric Acid or Nitric Acid solutions (ASTM A967 compliant)

  • Heating Option: Thermostatically controlled heating for accelerated reactions

  • Function: Removes iron particles and creates a protective chromium oxide layer

2.  High-Pressure Rinsing Station

  • Purpose: Immediately washes off acidic residues after passivation

  • Water Source: Industrial-grade or deionized water

  • Nozzle System: 360° high-pressure spray for full surface coverage

3.  Deionized (DI) Water Rinse Tank

  • Ensures zero ionic contamination post-passivation

  • Maintains surface purity of delicate surgical instruments

  • Critical for: Orthopedic, ophthalmic, and cardiovascular tools

4.  Neutralization Tank (Optional Step)

  • Contains a sodium bicarbonate or alkaline solution

  • Prevents residual acidity and helps stabilize the stainless steel

5.  Ultrasonic Cleaning Unit (Pre-Passivation)

  • Removes oils, dust, and polishing residue before chemical treatment

  • Frequency: 40–60 kHz

  • Ensures clean surfaces for effective passivation

6.  Digital Timer & Monitoring Panel

  • Automated time-temperature-acid ratio monitoring

  • Batch logging system for traceability & ISO 13485 audits

 Rigor’s Advantages

  • Fully in-house and compliant with ASTM, CE, ISO13485

  • Dedicated QA supervisor for every batch

  • Eco-friendly waste handling protocols
